Sercame

Blank separators

Self-descending magnet | Sercame

· ·

Braking position lock

Prevents the movement of the magnet when it is not in operation, maintaining the safety of operation and transport.

High-performance N6 neodymium magnet

High power for separation between formats.” or “High power for opening between formats.

Easy access to the interior for cleaning

Quick maintenance, without the need for special tools.

Support with adjustable height (optional)

Flexibility for different package configurations.

MG600 Magnetic Clamping Base (272 kg)

Secure and stable clamping on any metal surface.”

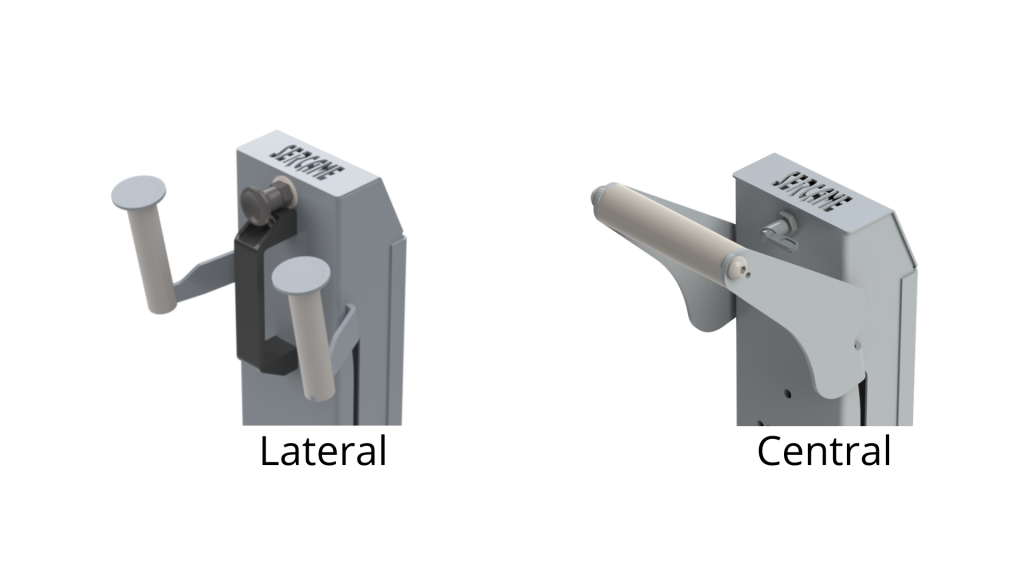

Type of handle

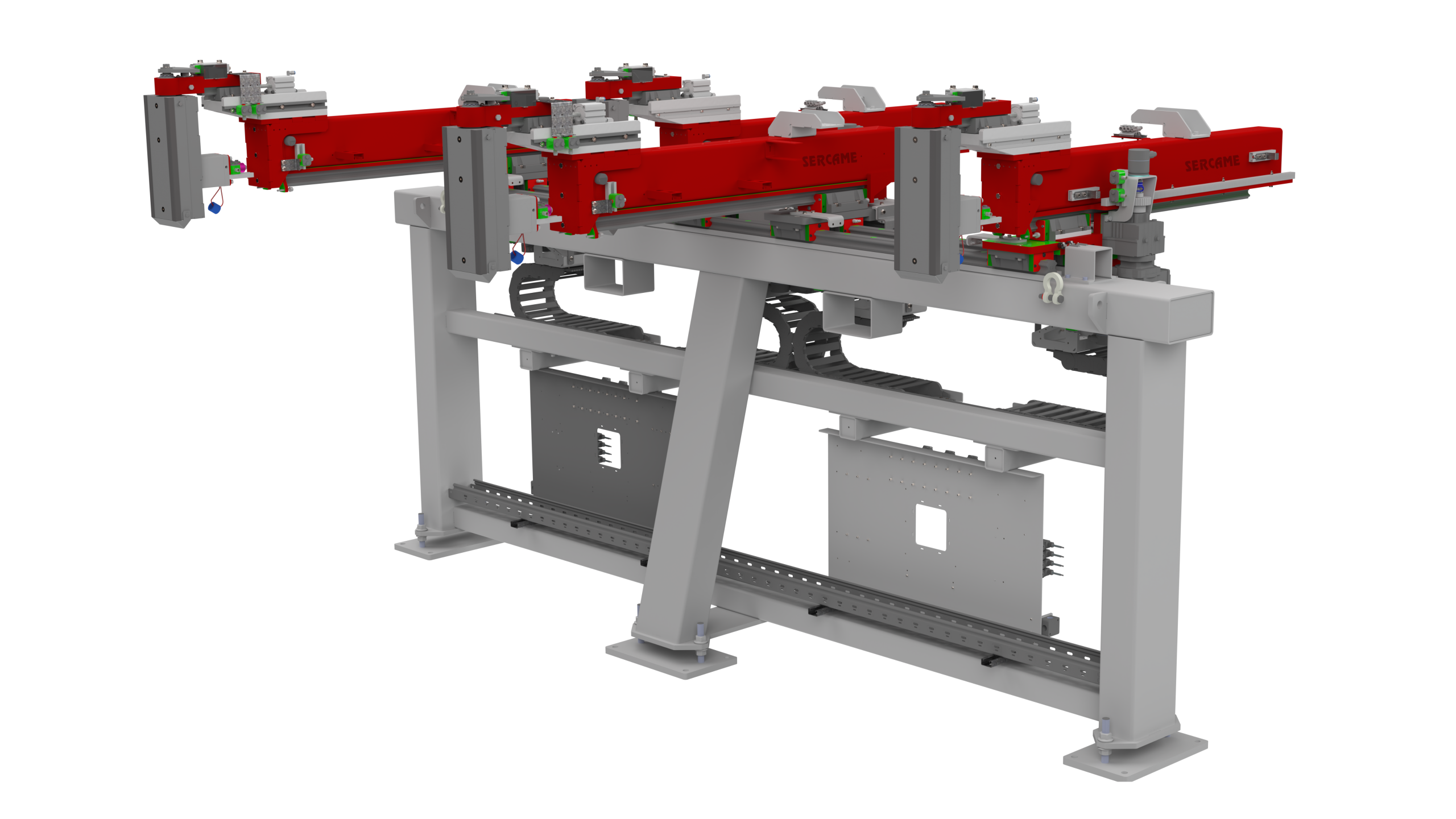

Retractable magnet | Sercame

· ·

N6 neodymium magnet

Integrated into a stainless-steel housing designed to maximize effective surface area, ensuring uniform separation between blanks with no inactive zones.

Retractable head

Modular head that ensures maximum proximity between the magnet and the blank stack.

Linear guiding system

Guarantees smooth and stable motion of the retractable assembly, increasing precision when positioning in front of the blank stack.

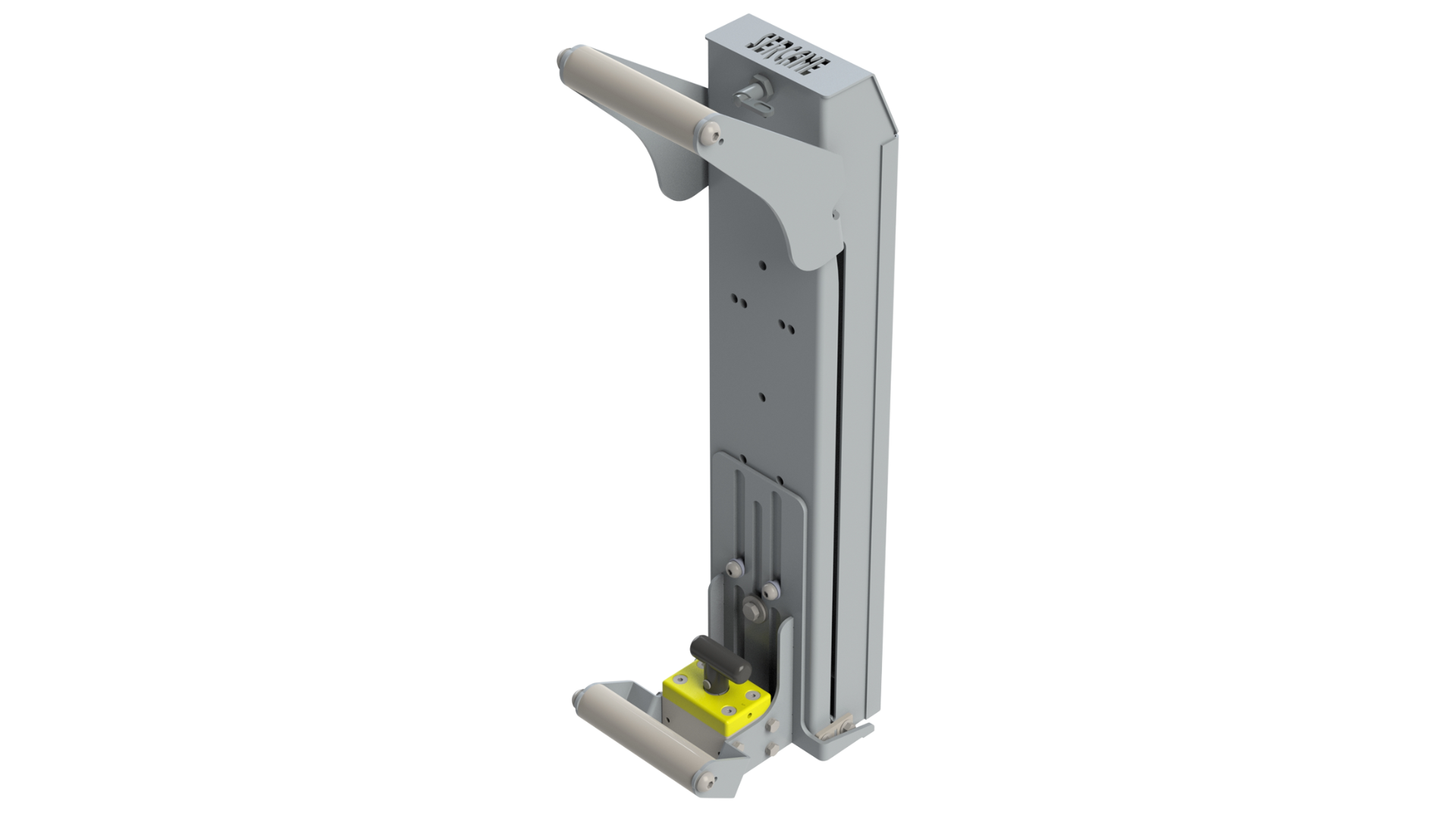

Self-descending magnet | Sercame

· ·

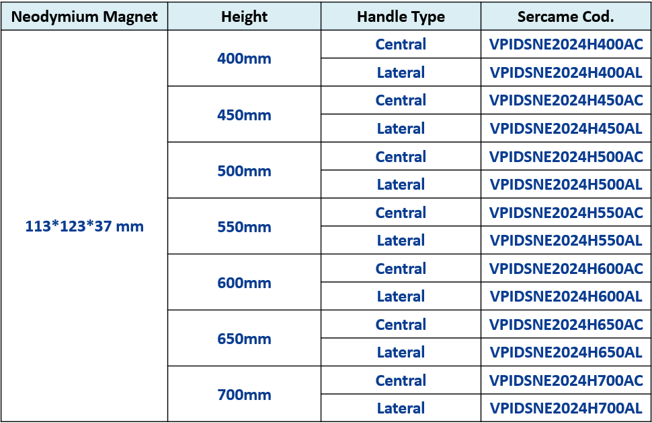

Height and handle type configuration

400 mm
Neodymium Magnet High Handle SERCAME Cod.
113×123×37 mm Central VPIDSNE2022H400AC
400 mm Lateral VPIDSNE2022H400AL
450 mm Central VPIDSNE2022H450AC
450 mm Lateral VPIDSNE2022H450AL
500 mm Central VPIDSNE2022H500AC
500 mm Lateral VPIDSNE2022H500AL
550 mm Central VPIDSNE2022H550AC
550 mm Lateral VPIDSNE2022H550AL
600 mm Central VPIDSNE2022H600AC
600 mm Lateral VPIDSNE2022H600AL
650 mm Central VPIDSNE2022H650AC
650 mm Lateral VPIDSNE2022H650AL
700 mm Central VPIDSNE2022H700AC
700 mm Lateral VPIDSNE2022H700AL

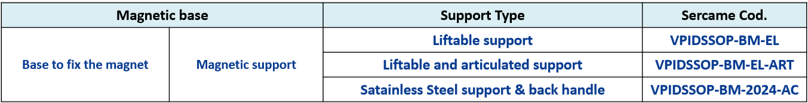

Support configuration

Magnetic Base Handle type SERCAME Cod.
Base to fix the magnet Magnetic support Liftable support
VPIDSSOP-BM-EL
Liftable and articulated support
VPIDSSOP-BM-EL-ART
Stainless steel support & back handle
VPIDSSOP-BM-2022-AC
CENTRAL
SIDE

Braking position lock

Prevents the movement of the magnet when it is not in operation, maintaining the safety of operation and transport.

High-performance N6 neodymium magnet

High power for separation between formats.” or “High power for opening between formats.

Easy access to the interior for cleaning

Quick maintenance, without the need for special tools.

Support with adjustable height (optional)

For different package configurations.

MG600 Magnetic Clamping Base (272 kg)

Secure and stable clamping on any metal surface.

Destacking blower | Sercame

· ·

Gravity braking system

System that regulates the descent by gravity according to the stack height, always maintaining the optimal position.

Blowing system (10 bar)

Blowing system with a single air connection.

Braking position lock

Prevents the movement of the magnet when it is not in operation, maintaining the safety of operation and transport.

Air tank

Sealed tank that maintains air pressure against variations in pressure.

MG600 magnetic mounting base (272Kg)

Secure and stable clamping on any metal surface.”

Sercame + Brodd Integration

Patented Bordd System

Internationally recognized solution for precise separation of magnetic and non-magnetic blanks (6 bar).

Gravity braking system

System that regulates the descent by gravity according to the stack height, always maintaining the optimal position.

Braking position lock

Prevents the movement of the magnet when it is not in operation, maintaining the safety of operation and transport.

Air tank

Sealed tank that maintains air pressure against variations in pressure.

MG600 magnetic mounting base (272Kg)

Secure and stable clamping on any metal surface.”

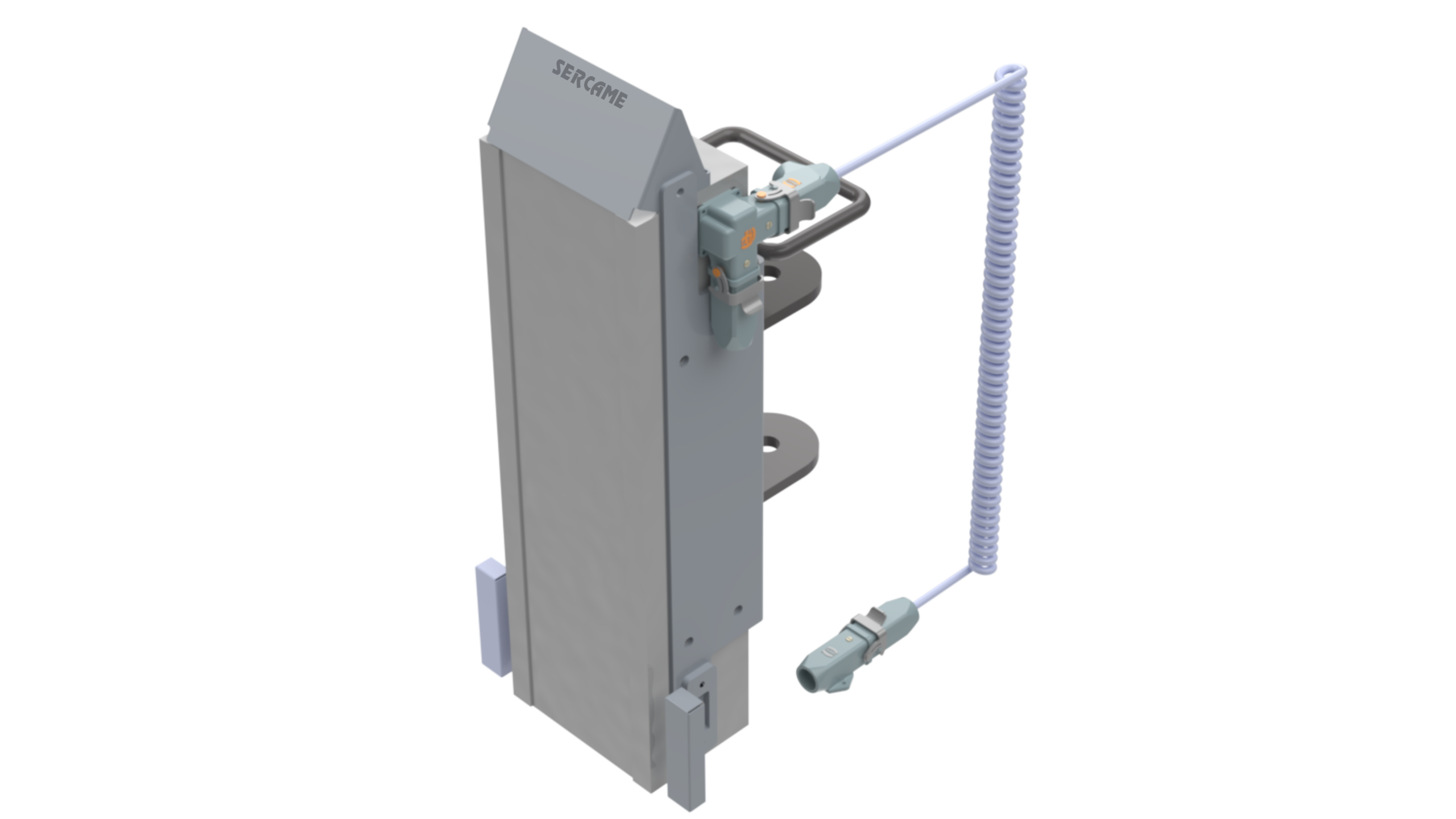

Electromagnet | Sercame

· ·

Compact design

Reduced dimensions that facilitate integration in limited spaces.

Electromagnet

Quick-clamping system

Adaptable for mounting on different types of arms and pantographs to facilitate assembly and disassembly at various points on the table.

Robust structure

Designed to protect electrical components and ensure a long service life.

Safe electrical connection

Protected and easily accessible wiring for installation and maintenance.

ON/OFF Control

Immediate activation and deactivation of the magnetic field for precise handling.
